Peplink Mobility 82G
5G-Ready Outdoor Antennas, Give Connectivity a Solid Boost
Peplink Products
Mobility Series Antennas
More pricing below, click here!
Please Note: All Prices are Inclusive of GST
Overview:
Mobility 82G

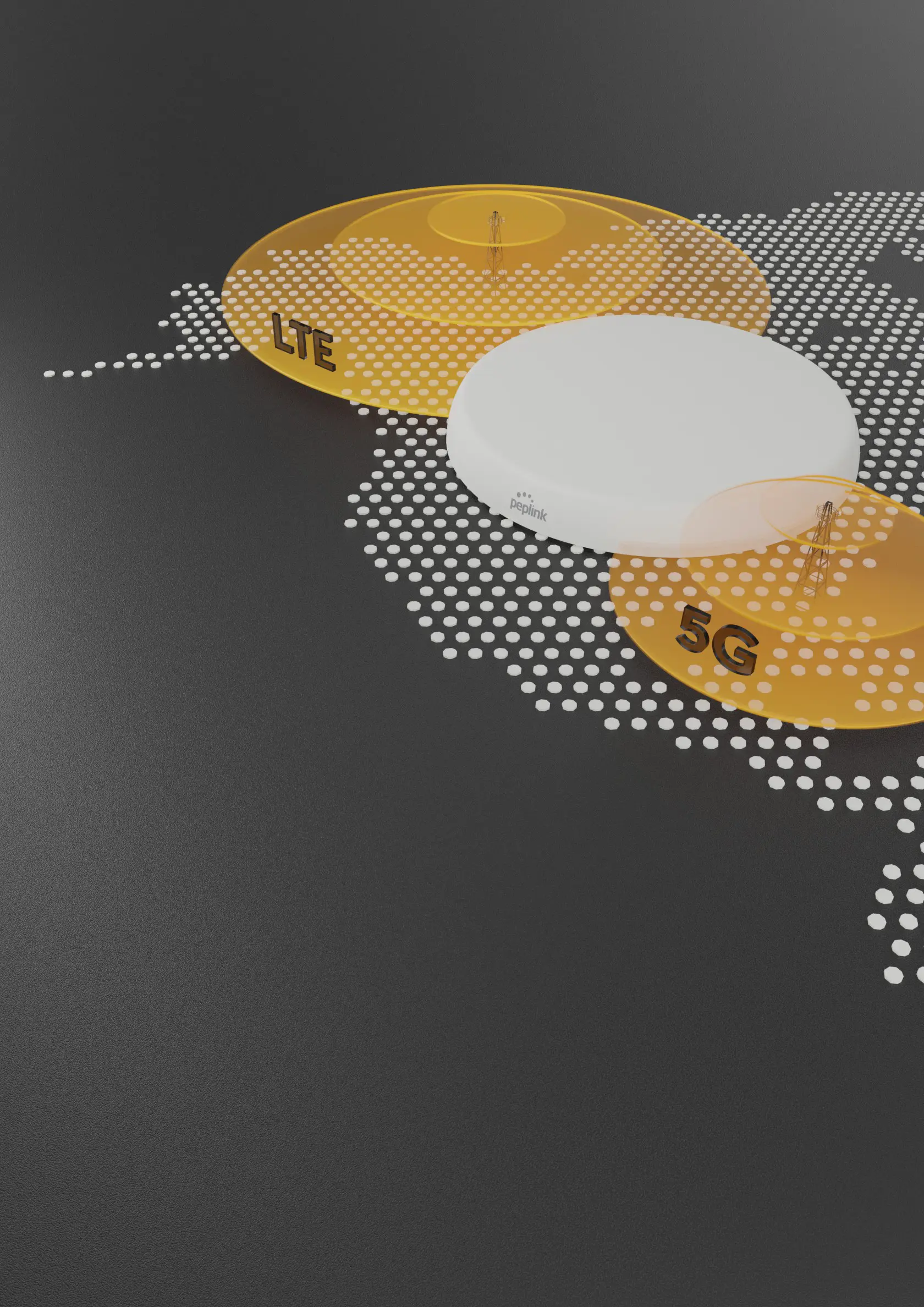

Built for 5G
Omni-directional 8×8 MIMO mobile antenna for the best performance.
Ultra Wide Bandwidth
Wide frequency range (600-6000MHz) supporting LTE and 5G connectivity in any location.
Robust Design
IP67 rated, low profile and durable housing.

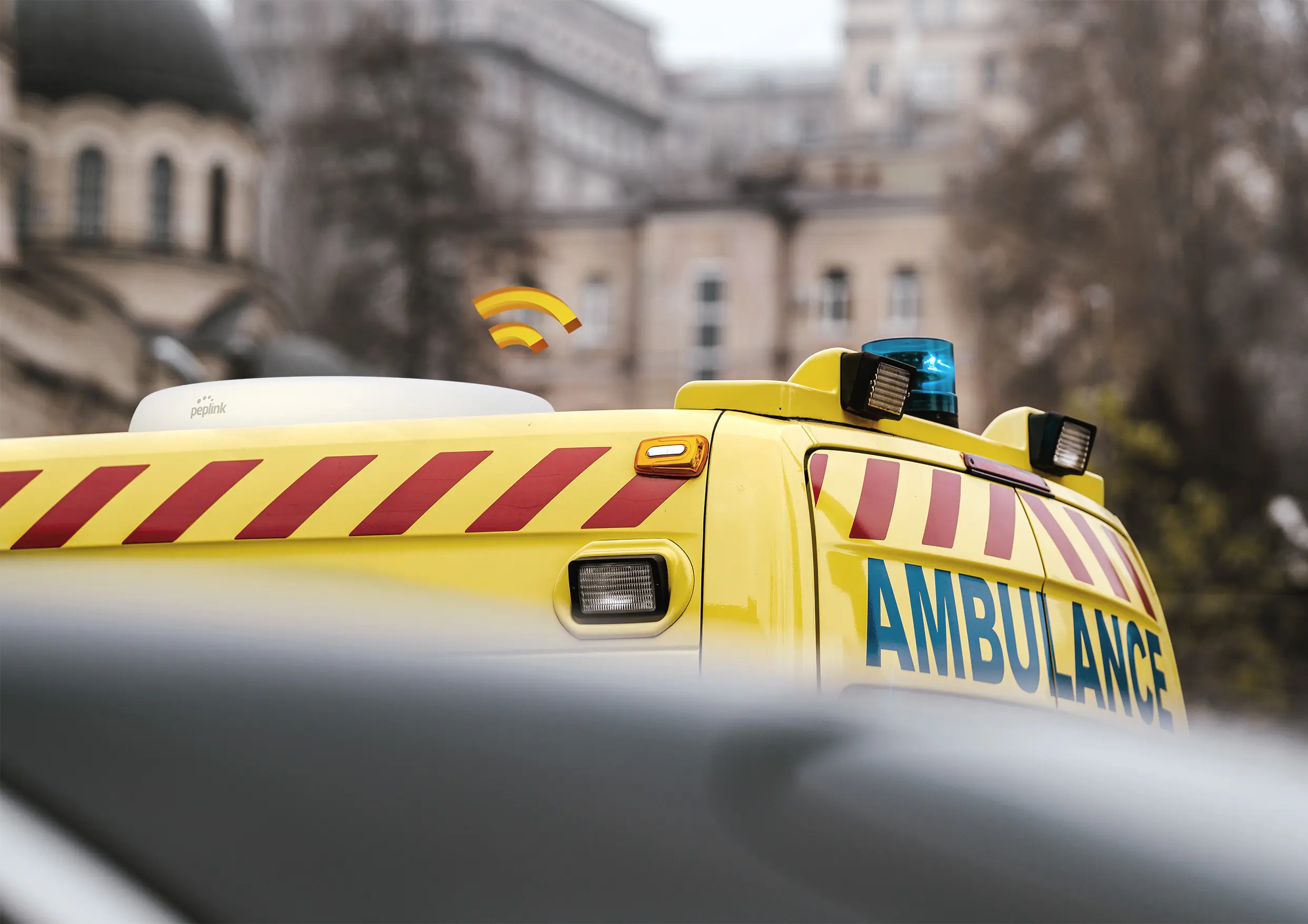

Easy Installation
Surface, panel installation for various applications.

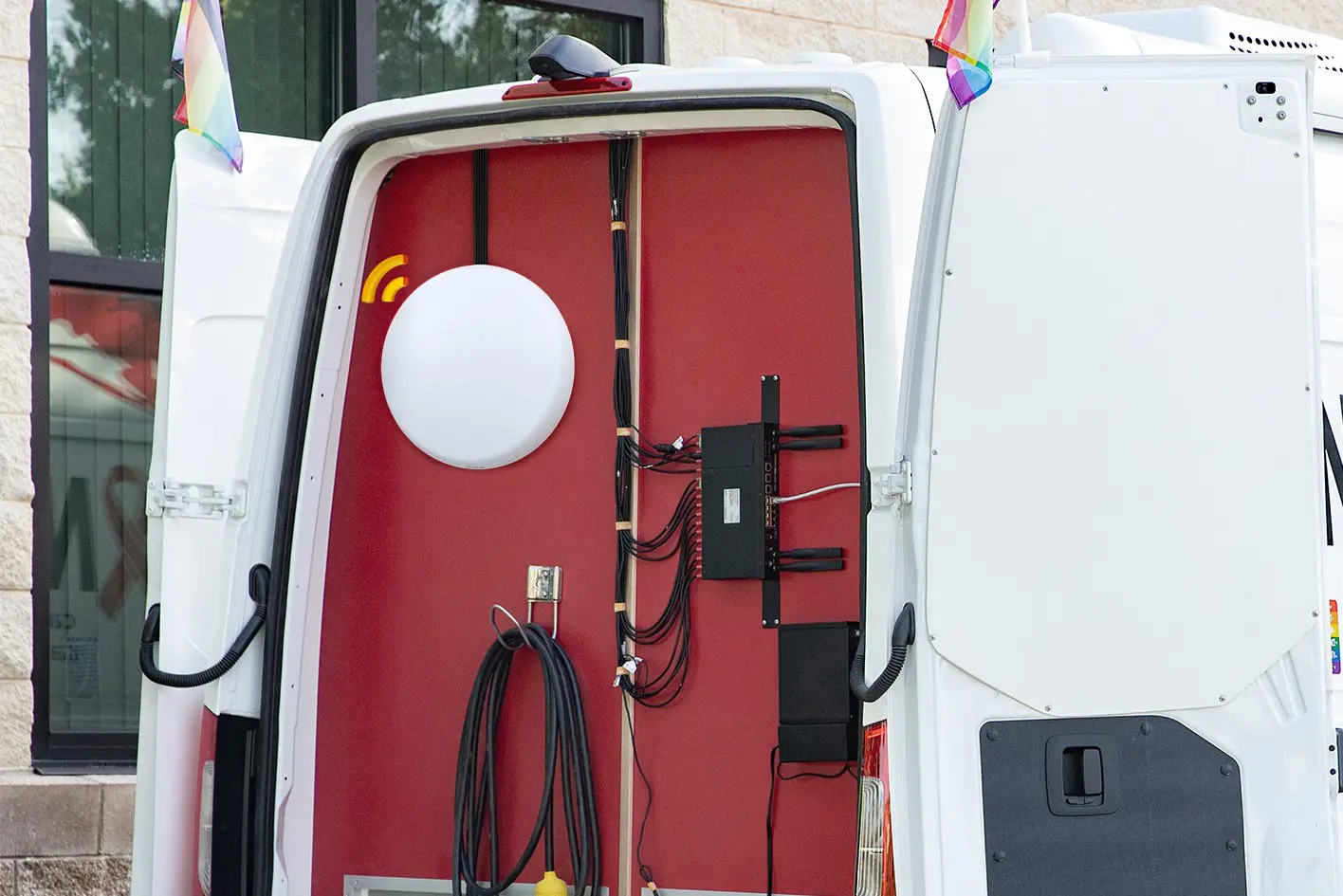

Flexible Applications
- Public Safety & Mission Critical Connectivity
- Mobile Healthcare
- Transportation Connectivity
Specifications:
| Peplink Mobility 82G | |
|---|---|
| Cellular | |
| Antenna Elements | 8 elements |
| Peak Gain & Frequencies |
5.4dBi: 617-960MHz
7.5dBi: 1400-2700MHz 8.1dBi: 3400-4200MHz 8.7dBi: 5000-6000MHz |
| VSWR | < 2.0 over 95% of the band |
| Feed Power Handling | 10W |
| Input Impedance | 50 Ω |
| Polarisation | Linear |
| GPS | |
| Frequency Range | 1575-1602 MHz |
| Peak Gain |
1.2 dBiC: 1575MHz
2.0 dBiC: 1602MHz |
| VSWR | < 1.6 |
| Output Return Loss | -10dB max |
| Gain: LNA | 29 ± 3 dB |
| Operating Voltage | 3.3 V |
| Power Consumption | 6 ±2 mA at 3.3 V |
| WiFi | |
| Antenna Elements |
2 elements
6.0dBi: 2400-2500MHz 7.4dBi: 5000-6000MHz |
| VSWR | < 2.0 |
| Feed Power Handling | 10W |
| Input Impedance | 50 Ω |
| Polarisation | Linear |
| Cable (LTE/5G, Wi-Fi) | |
| Type | CFD-200 |
| Loss |
0.33 dB/m @ 900 MHz
0.49 dB/m @ 2000 MHz 0.55 dB/m @ 2500 MHz 0.87 dB/m @ 5800 MHz |
| Diameter | 0.2 in. / 5.0 mm |
| Jacket | Half matt PVC, UV resistant |
| Termination | QMA male, SMA male, RP-SMA male (Wi-Fi) |
| Mounting | |
| Supported Types | Panel, surface (with additional mount) magentic (with additional mount) |
| Mounting Hole | 1.7" / 43mm |
| Max Panel Thickness | up to 6.7" / 170mm |
| Mechanical | |
| Product Dimensions |
2.46” / 62.5 mm - Height (spigot not included)
16.83” / 427.4 mm - Diameter |
| Packaged Dimensions |
20.16" x 20.09" x 9.06"
512x510x230mm |
| Radome Material | UV stable PC |
Documentation:
Download the Peplink Mobility 82G Datasheet (.PDF)
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
